Oil seal
TYPE
PRODUCT
TYPE
DESCRIPTION
MATERIALS
TEMPERATURE [°C]
min. – max.
SPEED
[m/s]
PRESSURE
[MPA]
max.
DIMENSIONS
(mm)
TECH.
INFO

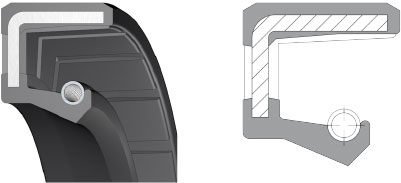

Oil seal
OS-A10
standard design
acc. to DIN 3760
NBR
-40
100
12
0.05
FKM
-30
200
35
0.05
VMQ, ACM, EPDM, HNBR,
-
-
-
-
4 - 1000

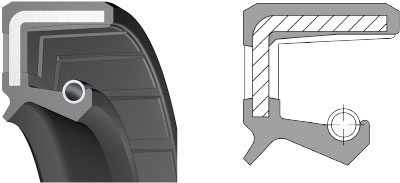

Oil seal
OS-A11
standard design
acc. to DIN 3760
with protective lip
NBR
-40
100
12
0.05
FKM
-30
200
35
0.05
VMQ, ACM, EPDM, HNBR,
-
-
-
-
4 - 1000
Oil seal

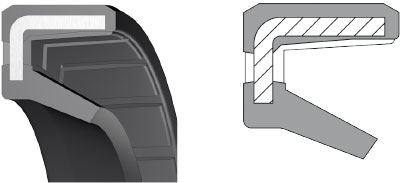

OS-A12
without spring
NBR
-40
100
6
0
FKM
-30
200
10
0
VMQ, ACM, EPDM, HNBR,
-
-
-
-
>= 3

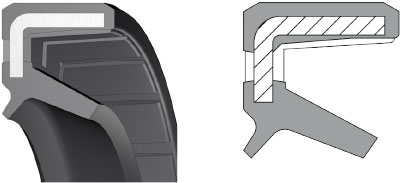

Oil seal
OS-A13
without spring
with protective lip
NBR
-40
100
6
0
FKM
-30
200
10
0
VMQ, ACM, EPDM, HNBR,
-
-
-
-
>= 4
Oil seal
OS-F10
case fully covered
(310-1000 mm airside fully covered only)
spring 1.4301
standard design for FKM
material
FKM
-30
200
35
0.05
NBR
-40
100
12
0.05
VMQ, ACM, EPDM, HNBR,
-
-
-
-
4 - 1000

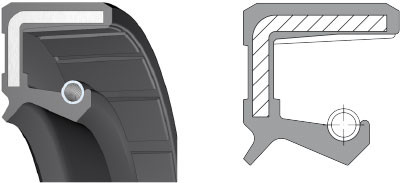

Oil seal
OS-F11
case fully covered
(310-1000 mm airside fully covered only)
spring 1.4301
standard design with protective lip for FKM material
FKM
-30
200
35
0.05
NBR
-40
100
12
0.05
VMQ, ACM, EPDM, HNBR,
-
-
-
-
4 - 1000

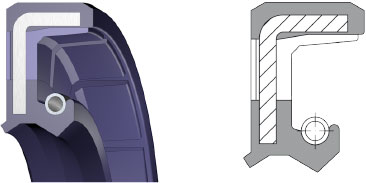

Oil seal
OS-N21
pressure resistant
with protective lip
standard design
NBR
-40
100
12
1
FKM
-30
170
35
1
8 - 300

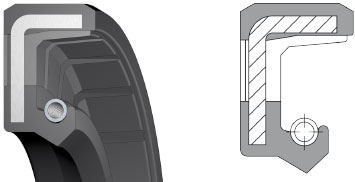

Oil seal
OS-N34
pressure resistant
NBR
-40
100
12
1
FKM
-30
170
35
1
8 - 300

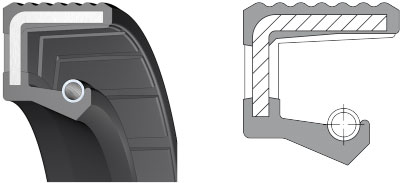

Oil seal
OS-G10
ribbed rubber OD
NBR
-40
100
12
0.05
FKM
-30
200
35
0.05
VMQ, ACM, EPDM, HNBR,
-
-
-
-
4 - 1000

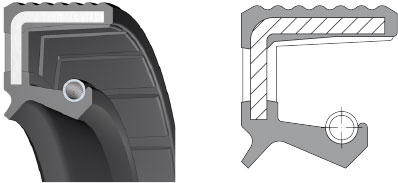

Oil seal
OS-G11
ribbed rubber OD
with protective lip
NBR
-40
100
12
0.05
FKM
-30
200
35
0.05
VMQ, ACM, EPDM, HNBR,
-
-
-
-
4 - 1000
Oil seal

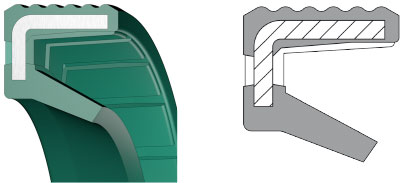

OS-G12
ribbed rubber OD
without spring
NBR
-40
100
6
0
FKM
-30
200
10
0
VMQ, ACM, EPDM, HNBR,
-
-
-
-
>= 3

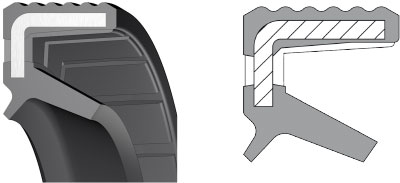

Oil seal
OS-G13
ribbed rubber OD
without spring

with protective lip
NBR
-40
100
6
0
FKM
-30
200
10
0
VMQ, ACM, EPDM, HNBR,
-
-
-
-
>= 4

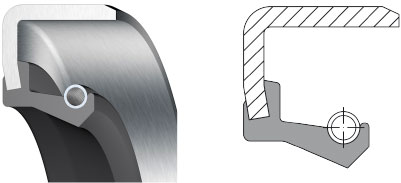

Oil seal
OS-B10
standard design
metal housing
NBR
-40
100
12
0.05
FKM
-30
200
35
0.05
VMQ, ACM, EPDM, HNBR,
-
-
-
-
6 - 1000

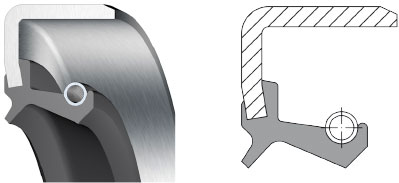

Oil seal
OS-B11
metal OD
with protective lip
NBR
-40
100
12
0.05
FKM
-30
200
35
0.05
VMQ, ACM, EPDM, HNBR,
-
-
-
-
6 - 1000
Oil seal

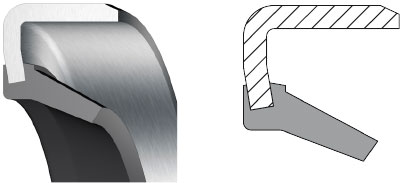

OS-B12
metal OD without spring
NBR
-40
100
6
0
FKM
-30
200
10
0
VMQ, ACM, EPDM, HNBR,
-
-
-
-
>= 4

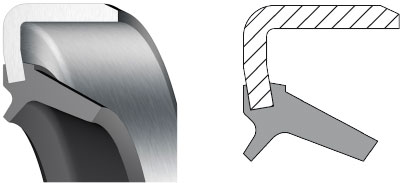

Oil seal
OS-B13
metal OD
without spring
with protective lip
NBR
-40
100
6
0
FKM
-30
200
10
0
VMQ, ACM, EPDM, HNBR,
-
-
-
-
>= 4

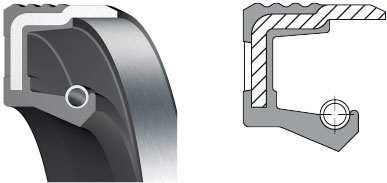

Oil seal
OS-BG10
metal + rubber OD
NBR
-40
100
12
0.05
FKM
-30
200
35
0.05
VMQ, ACM, EPDM, HNBR,
-
-
-
-
4 - 1000

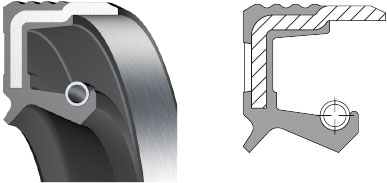

Oil seal
OS-BG11
metal + rubber OD
with protective lip
NBR
-40
100
12
0.05
FKM
-30
200
35
0.05
VMQ, ACM, EPDM, HNBR,
-
-
-
-
4 - 1000

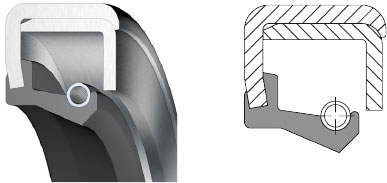

Oil seal
OS-C10
standard design
metal housing
+ reinforcement cap
NBR
-40
100
12
0.05
FKM
-30
200
35
0.05
VMQ, ACM, EPDM, HNBR,
-
-
-
-
6 - 1000

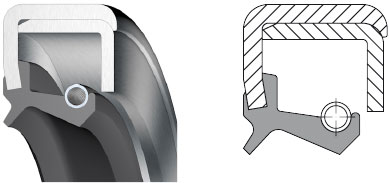

Oil seal
OS-C11
metal OD
+ reinforcement cap
with protective lip
NBR
-40
100
12
0.05
FKM
-30
200
35
0.05
VMQ, ACM, EPDM, HNBR,
-
-
-
-
6 - 1000

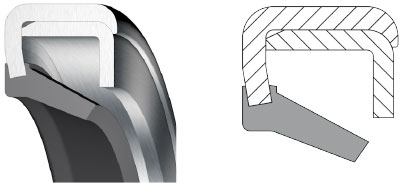

Oil seal
OS-C12
metal OD
+ reinforcement cap
without spring
NBR
-40
100
6
0
FKM
-30
200
10
0
VMQ, ACM, EPDM, HNBR,
-
-
-
-
>= 6

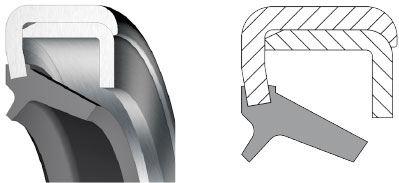

Oil seal
OS-C13
metal OD
+ reinforcement cap
with protective lip
without spring
NBR
-40
100
6
0
FKM
-30
200
10
0
VMQ, ACM, EPDM, HNBR,
-
-
-
-
>= 6

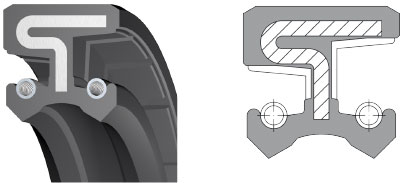

Oil seal
OS-D10
two sealing lips for separating two media
NBR
-40
100
5
0.03
FKM
-30
200
10
0.03
VMQ, ACM, EPDM, HNBR,
-
-
-
-
<= 1000

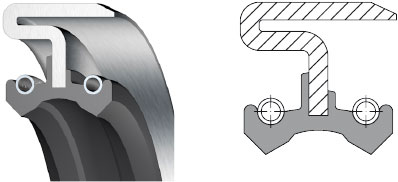

Oil seal
OS-D15
two sealing lips for separating two media
NBR
-40
100
5
0.03
FKM
-30
200
10
0.03
VMQ, ACM, EPDM, HNBR,
-
-
-
-
<= 1000

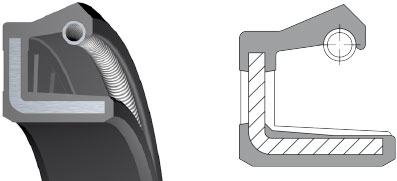

Oil seal
OS-O18
outside sealing
NBR
-40
100
10
0.05
FKM
-30
200
10
0.05
VMQ, ACM, EPDM, HNBR,
-
-
-
-
<= 1000
Oil seal

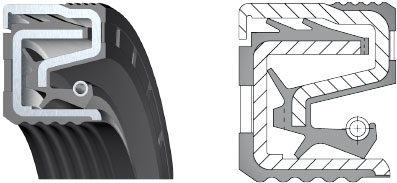

OS-ST18
cassette seal
other designs available
NBR
-40
80
7
0.05
FKM
-30
100
9
0.05
VMQ, ACM, EPDM, HNBR,
-
-
-
-
<= 300

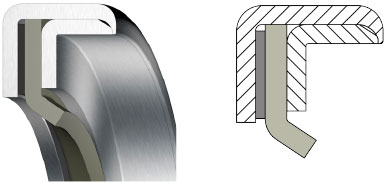

Oil seal
OS-PA30
clamped sealing lip
pressure resistant
non-mould production
PTFE compounds
stainless steel
-90
250
40
0.5
20 - 1200
Oil seal

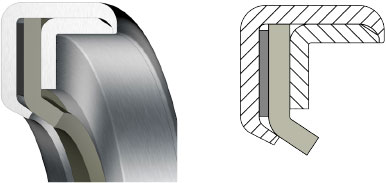

OS-PA31
clamped sealing lip
pressure resistant
non-mould production
PTFE compounds
stainless steel
-90
250
40
1
31 - 1200

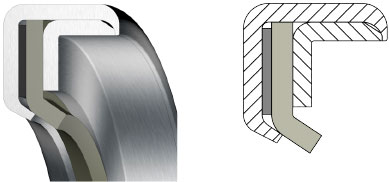

Oil seal
OS-PA32
clamped sealing lip
pressure resistant
non-mould production
PTFE compounds
stainless steel
-90
250
40
2.5
31 - 1200

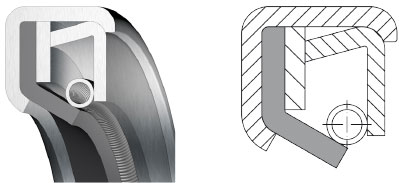

Oil seal
OS-W10
clamped sealing lip
pressure resistant
non-mould production
NBR
-40
100
12
0.5
FKM
-30
200
15
1 (optional)
<= 1200
Oil seal

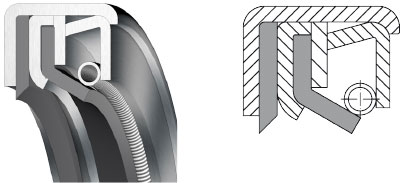

OS-W11
clamped sealing lip
pressure resistant
non-mould production
NBR
-40
100
12
0.5
FKM
-30
200
15
1 (optional)
<= 1200
Oil seal

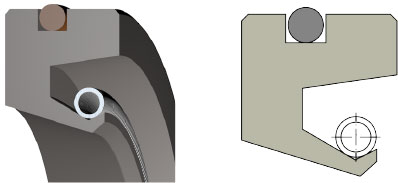

OS-W50
chemical resistant
pressure resistant
non-mould production
PTFE carbon / graphite
-20
200
15
1
O-Ring: FKM
-
-
-
-
Spring: 1.4571
-
-
-
-
<= 300

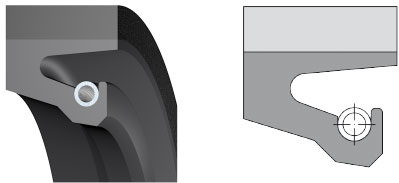

Oil seal
OS-Q10
OD made of rubber fabric
for large-scale machines
split version possible
NBR + NBR-Fabric
-30
100
20
0.05
FKM + FKM-Fabric
-20
180
25
0.05
<= 1200

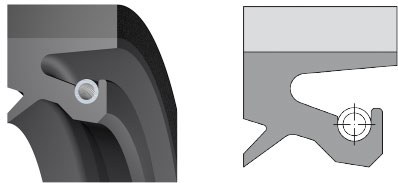

Oil seal
OS-Q11
OD made of rubber fabric
for large-scale machines
split version possible
NBR + NBR-Fabric
-30
100
20
0.05
FKM + FKM-Fabric
-20
180
25
0.05
<= 1200

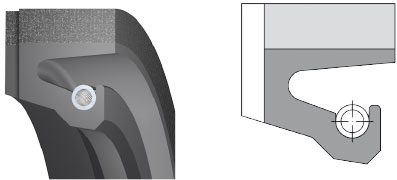

Oil seal
OS-Q12
OD made of rubber fabric
for large-scale machines
split version possible
NBR + NBR-Fabric
-30
100
20
0.05
FKM + FKM-Fabric
-20
180
25
0.05
<= 1200
Oil seal

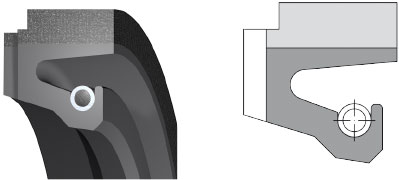

OS-Q13
OD made of rubber fabric
for large-scale machines
split version possible
NBR + NBR-Fabric
-30
100
20
0.05
FKM + FKM-Fabric
-20
180
25
0.05
<= 1200

On request available in other materials
