Radial seal
TYPE
PRODUCT
TYPE
DESCRIPTION
MATERIALS
TEMPERATURE [°C]
min. – max.
min. – max.
SPEED
[m/s]
[m/s]
PRESSURE
[MPA]
max.
[MPA]
max.
DIMENSIONS
(mm)
(mm)
TECH.
INFO
INFO

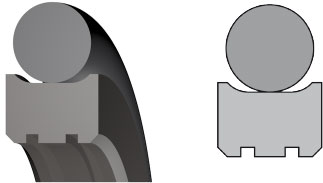

Radial seal
RD-10
for rotating and oscillating movements
inside sealing
inside sealing
PTFE carbon/graphite,
-
-
5
30
O-Ring: NBR
-30
100
-
-
O-Ring: FKM
-15
200
-
-
<= 2500

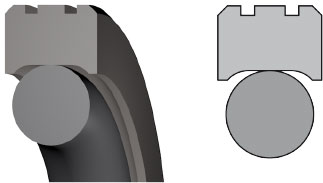

Radial seal
RD-11
for rotating and oscillating movements
outside sealing
outside sealing
PTFE carbon/graphite,
-
-
5
30
O-Ring: NBR
-30
100
-
-
O-Ring: FKM
-15
200
-
-
<= 2500

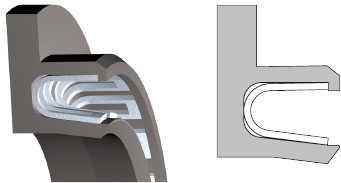

Radial seal
RD-14
with clamp flange
high thermal and
chemical resistance
high thermal and
chemical resistance
PTFE carbon/graphite,
-100
200
2
15
V-spring: 1.4310
-
-
-
-
<= 2500
On request available in other materials
