Rod seal
TYPE
PRODUCT
TYPE
DESCRIPTION
MATERIALS
TEMPERATURE [°C]
min. – max.
SPEED
[m/s]
PRESSURE
[MPA]
max.
DIMENSIONS
(mm)
TECH.
INFO

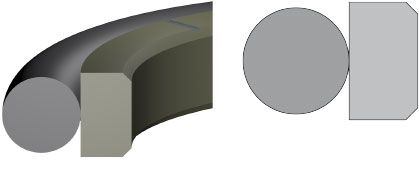

Rod seal
RS-10
double acting
PTFE bronze + OR NBR
-30
100
15
40
PTFE bronze + OR FKM
-15
200
15
40
TPU + OR NBR
-30
100
2
-
<= 2500

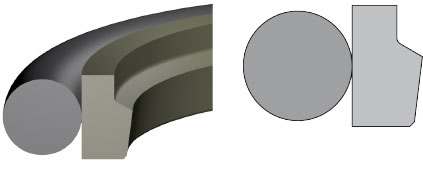

Rod seal
RS-11
single acting
PTFE bronze + OR NBR
-30
100
15
40
PTFE bronze + OR FKM
-15
200
15
40
TPU + OR NBR
-30
100
2
-
<= 2500

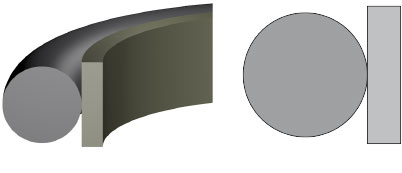

Rod seal
RS-12
double acting
PTFE bronze + OR NBR
-30
100
2
16
PTFE bronze + OR FKM
-15
200
2
16
<= 2500

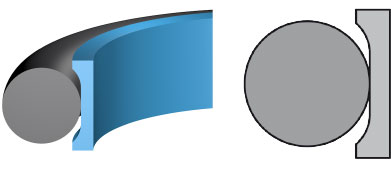

Rod seal
RS-13
double acting
PTFE compound + OR NBR
-30
100
15
35
PTFE compound + OR FKM
-15
200
15
35
<= 2500

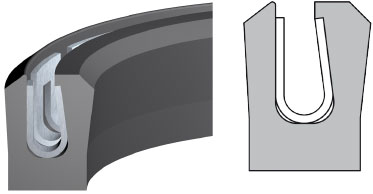

Rod seal
RS-87
single acting
PTFE carbon / graphite
V-spring: 1.4310
-150
250
15
35
<= 2500

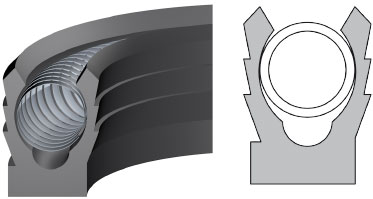

Rod seal
RS-88
single acting
PTFE compounds
V-spring: 1.4310
-150
250
10
25 (45)
<= 2500

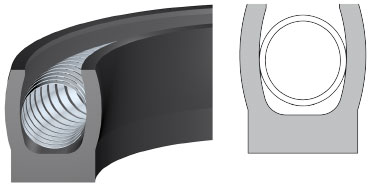

Rod seal
RS-89
single acting
PTFE compounds
V-spring: 1.4310
-150
250
5
30
<= 2500

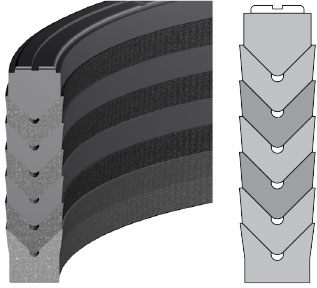

Rod seal
RS-20
single acting
NBR / Fabric + NBR +POM
-30
100
0.5
40
FKM / Fabric + FKM
-15
150
0.5
40
<= 450

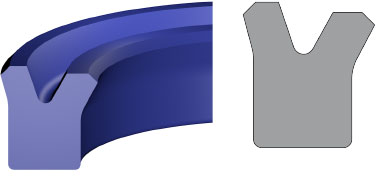

Rod seal
RS-72
single acting
TPU
-30/-40
100
0.5
40
NBR
-30
100
0.5
15
TPU <= 600
NBR <= 245

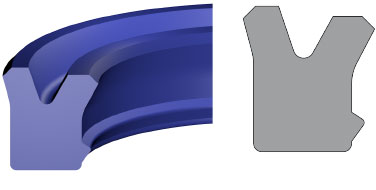

Rod seal
RS-73
single acting
TPU
-30/-40
100
0.5
40
<= 300

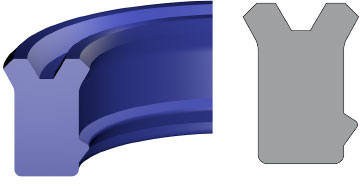

Rod seal
RS-76
single acting
TPU
-30/-40
100
0.5
40
<= 250

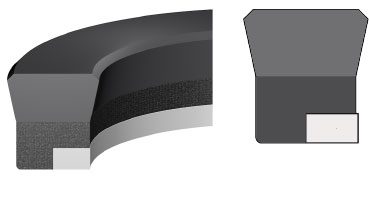

Rod seal
RS-31
single acting
NBR + NBR/Fabric + POM
-30
100
0.5
40
<= 230

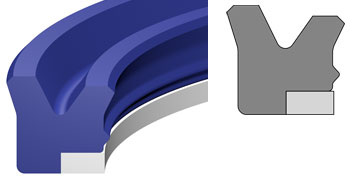

Rod seal
RS-74
single acting
TPU + POM
-35
100
0.5
40
<= 380

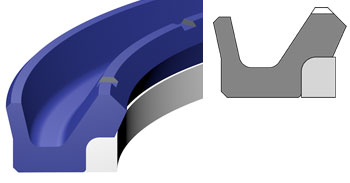

Rod seal
RS-80
single acting
buffer seal
TPU + POM
-40
100
0.5
40
<= 150

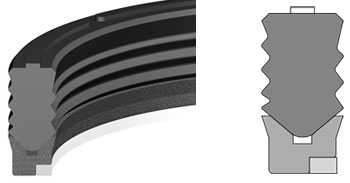

Rod seal
RS-32
single acting
NBR + NBR/Fabric (TPE) + POM
-30
100
0.5
70
<= 260

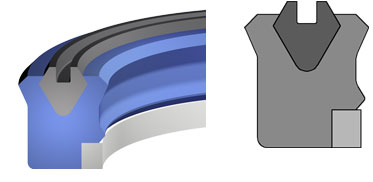

Rod seal
RS-35
single acting
heavy duty
TPU + NBR + POM
-30
100
0.5
63
<= 340

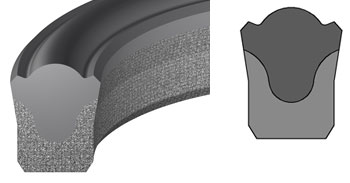

Rod seal
RS-36
single acting
NBR + NBR/Fabric
-30
100
0.5
25
<= 110

On request available in other materials
